Product Description

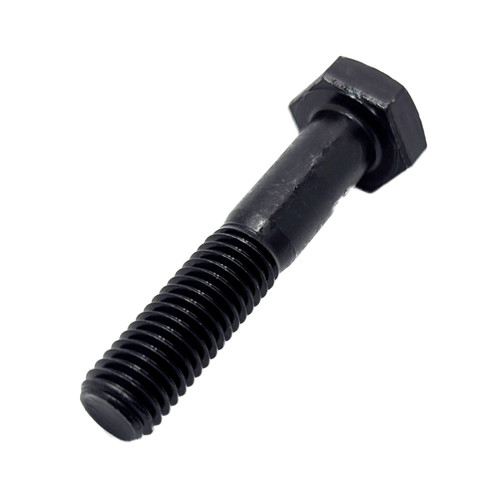

M24 x 160mm High Tensile Set Bolt manufactured to DIN 931 dimensions with a Grade 10.9 strength classification and self colour finish. Designed for high-strength mechanical, engineering and steel fabrication applications where a partially threaded hexagon head bolt is required.Manufactured from high-strength quenched and tempered steel, Grade 10.9 fasteners provide excellent tensile strength for heavily loaded bolted connections. The partially threaded design provides a plain shank through part of the bolt length, making these set bolts suitable for structural, machinery and general engineering assemblies.
The self colour finish leaves the steel without a protective zinc coating, making these bolts particularly suitable for dry environments, fabrication work, machinery assembly or applications where the finished assembly will subsequently be painted or otherwise protected.
Product Specification:
- Size: M24 x 160mm
- Thread Diameter: M24
- Length: 160mm measured from beneath the head
- Standard: DIN 931
- Strength Grade: 10.9 High Tensile
- Thread Type: Metric Coarse
- Standard M24 Thread Pitch: 3.0mm
- Threaded: Part Threaded
- Head Type: Hexagon Head
- Drive Type: External Hex
- Finish: Self Colour / Plain Steel
- Material: High Tensile Steel
- Standard M24 Spanner / Socket Size: 36mm
Key Features:
- High tensile Grade 10.9 construction for demanding mechanical and engineering applications
- DIN 931 dimensional standard for part-threaded metric hexagon head bolts
- Plain shank section suitable for applications where the shear plane passes through the unthreaded portion of the bolt
- Hexagon head allows controlled tightening using standard spanners, sockets and torque tools
- Self colour finish suitable for fabrication, machinery and dry internal applications
- Suitable for use in steel fabrication, machinery, equipment assembly, automotive, construction and general engineering applications
Typical Applications:
Steel fabrication, machinery assembly, structural connections, plant and equipment, automotive engineering, construction and general mechanical fastening.
M24 x 160mm DIN 931 Grade 10.9 High Tensile Self Colour Set Bolt / Hex Bolt for applications requiring a strong, reliable part-threaded metric fastener.
