Product Description

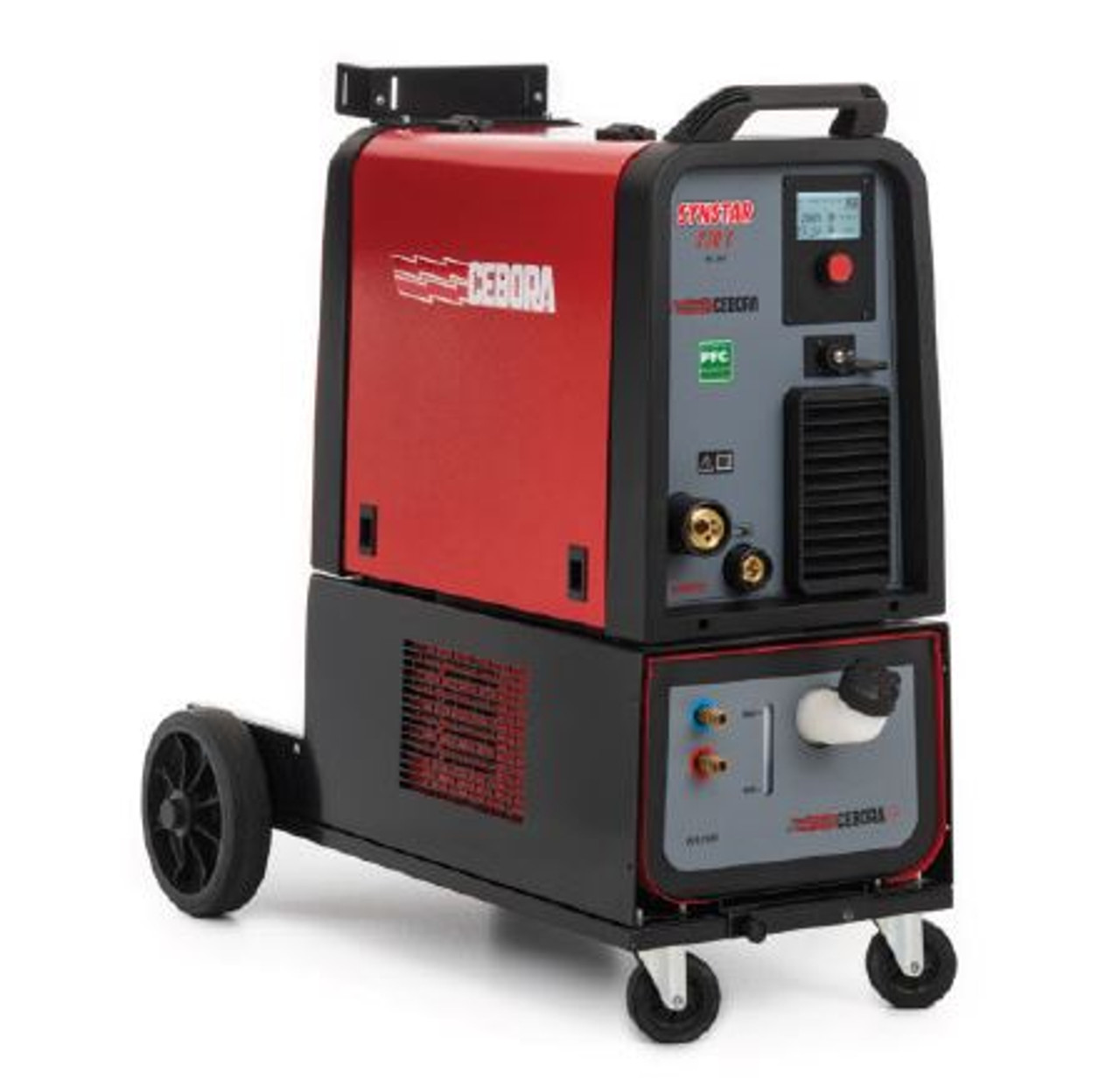

SYNSTAR 200 M, 250 M and 270 T are synergic inverter power sources for MIG/MAG welding with an
innovative design, particularly versatile and suitable for various applications, especially for light – medium
metal works.
› SHORT process (double current level)
› PULSE and DOUBLE PULSE processes (optional)
› Synergic curves for solid wire and aluminum from Ø 0.6 to 1.2 mm, (depending on the model) flux cored
wire (Ø 0.9* mm) and CuSi3 (Ø 0.8 / 0.9 / 1.0 mm)
› LCD display to view and adjust the major functions instantly:
Type of wire or gas, current and thickness, voltage and wire speed
› EURO connection: the standard MIG torch (Art. 1242), the water-cooled MIG torch (Art. 1241 only for
Art. 324) and CEBORA Push-Pull (Art. 2003) can be used
› 2-roller-wire feed unit (Art. 322) and 4-roller-wire feed (Art. 358, 324)
Power sources characterized by low electrical input (PFC)
Compliant with EN 61000-3-12 standard
Three phase input
400V + 15% / -20%
50/60 Hz
Fuse rating (slow blow) 16 A
Input power
9,3 kVA 20%
6,9 kVA 60%
5,3 kVA 100%
min - max current
obtainable in welding
20 ÷ 270 A
Duty Cycle (10 min.40°C)
According to IEC 60974-1
270 A 20%
220 A 60%
180 A 100%
Stepless regulation Electronic
Max. wire spool size Ø 300 mm / 15 kg
Protection class IP 23 S
Weight 50 kg
Dimensions (WxLxH) 480 x 830 x 825 mm
