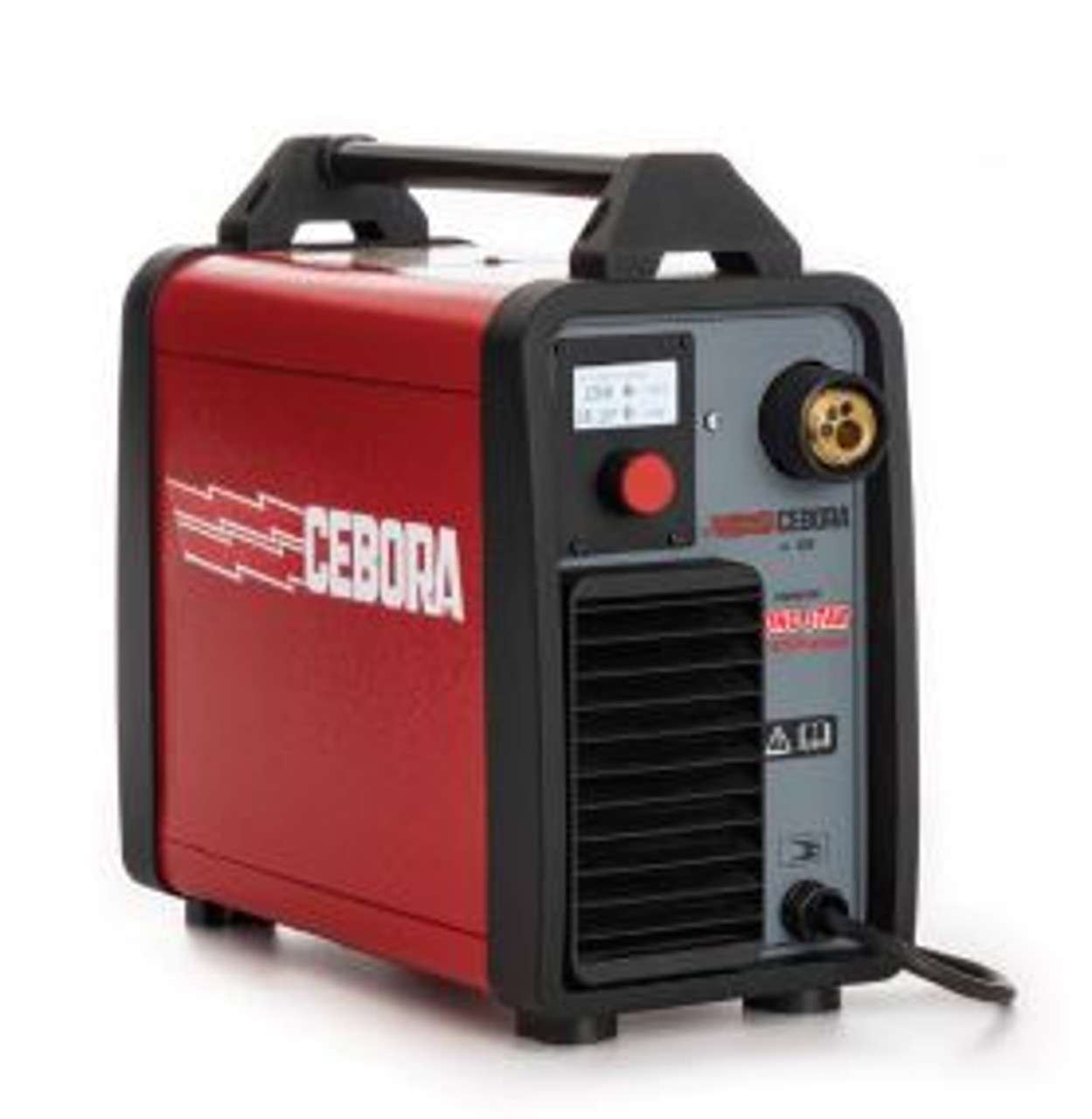

Product Description
Single phase input
230 V +15% / -20%
50/60 Hz
Fuse rating (slow blow) 16 A
Input power
4,5 kVA 20%
2,8 kVA 60%
2,5 kVA 100%
min - max current
obtainable in welding
20 ÷ 160 A
Duty Cycle (10 min.40°C)
According to IEC 60974-1
160 A 20%
110 A 60%
100 A 100%
Stepless regulation Electronic
Max. wire spool size Ø 200 mm / 5 kg
Protection class IP 23 S
Weight 11 kg
Dimensions (WxLxH) 196 x 420 x 380 mm
